Lecture 14: Document Object Model

-

Welcome to lecture 14! Here’s a brief class breakdown.

puppers

-

Learning Objectives

-

Agenda

  1. Introduction to the Document Object Model (referred to as the DOM)
  2. DOM Manipulation with Vanilla JS
  3. Event Handling
  4. Introduction to jQuery

Introduction to the DOM

-

Now that we have a decent grasp of the fundamentals of Javascript and programming, we are able to explore how we can apply these skills towards building interactive user interfaces.

-

Document Object Model (DOM)

The DOM is a programming interface for HTML. It’s a representation in JavaScript of the structure and content of an HTML tree.

-

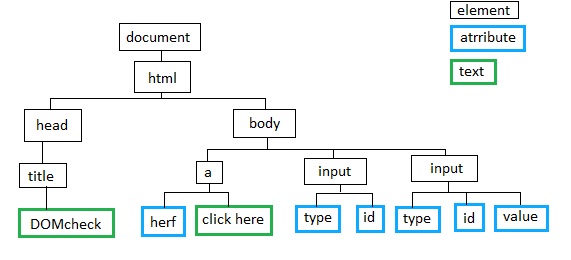

(DOM Tree)

dom tree

-

…but what is the DOM Tree tho?

-

Essentially, there are algorithms that walk through a piece of HTML content and parse the tags, attributes, etc into a javascript object that represents that piece of HTML code.

-

Since we now have a variable that “represents” the HTML code, we are able to use javascript freely - and all the techniques we have learned for object manipulation and usage - to query and manipulate our HTML.

-

In the browser, there is a built in document object that will also register our changes to the DOM object and make appropriate updates to the browser window itself.

-

In short, thanks to the DOM we can use JavaScript to change text, styling, add and remove elements, make elements clickable, etc.

-

It’s worth noting that the document object is ONLY available in the browser environment, but there are plenty of NodeJS libraries that will try to approximate this browser specific behavior (but they are not perfect).

-

Inspecting the DOM using Chrome’s console

-

Go to http://www.nytimes.com/. Open the developer tools in Chrome and navigate to the Console tab

-

-

Running JavaScript in the Browser

-

There are several ways to do this, the most proper approach is to use the script tag

<script src="./path/to/js/folder"></script>

This goes on the bottom of your HTML code, right before the closing <body> tag

-

Core JavaScript, DOM API, Third-party Libraries

-

We can divide the JavaScript we write into three categories:

-

Core JavaScript

-

Core JavaScript consists of our data types, control structures, the standard library, etc. This is what we get for free when we run JavaScript anywhere***, *e.g. our browser, Node, etc.

(NOTE: The standard library includes things like the Math and Date objects.)

-

DOM API

-

The DOM API includes DOM objects like document and their associated methods,

  1. .getElementById(),
  2. getComputedStyle(), etc.

We get the DOM API for free when we run JavaScript in a web browser.

-

Third-Party Libraries

-

This is any JavaScript that’s included as an extra file, e.g. jQuery, React, Angular, etc. We have to include the file for the library to use it.

-

When we refer to vanilla JavaScript, it’s everything but third-party libraries, e.g. jQuery. Vanilla JavaScript is the DOM API and core JavaScript.

-

Anything that we do with a third-party library, we can do using vanilla JavaScript; we just have to write it. There will always be tradeoffs between our JavaScript file sizes, how much time we spend implementing some functionality, etc.

DOM Manipulation

-

Let’s modify the DOM together using vanilla JavaScript.

-

Create New Project Folder

-

Let’s make a test folder

-

  1. Create a folder called test.
  2. Inside your test folder, add a styles subfolder and a js subfolder
  3. Create one empty file, app.css inside your styles folder
  4. Create one empty file, app.js inside your js folder
  5. Create an index.html and link your css and js correctly to the code.

-

How can we test to ensure that the files are being loaded correctly?

-

Retrieving Elements using Vanilla JavaScript

-

We have many ways in vanilla JavaScript to retrieve elements that are on the page.

-

By retrieve, we mean get a reference to the element. Once we have a reference to an element, we can manipulate it, e.g. change its text, styling, children, etc.

-

document.getElementById()

<ul>
    <li id="first">Eggs</li>
    <li id="second">Milk</li>
</ul>

const firstListItem = document.getElementById('first');
console.log(firstListItem);
//=> shows first li element with the id "first"

-

It’s a very old way to retrieve an element; there are similar old methods, e.g. .getElementsByClassName() and .getElementsByTagName(). We won’t use some because we have something better!

-

document.querySelector()

document.querySelector() retrieves the first element that matches the CSS selector string

<ul>
    <li class="test">Eggs</li>
    <li class="test">Milk</li>
</ul>

const firstListItem = document. querySelector('.test');
console.log(firstListItem);
//=> shows first li element with the class "first"

Notice in the code above that the second li was not retrieved.

-

document.querySelectorAll()

document.querySelectorAll() returns a list of all elements that match a CSS selector string

<ul>
    <li class="test">Eggs</li>
    <li class="test">Milk</li>
</ul>

const listItems = document. querySelectorAll('.test');
console.log(listItems);
//=> shows all li elements with the class "first"

-

The result above is an array-like object, but not an array. Technically, it’s a Nodelist.

-

Exercise

Consider this repo. Download and open the jQuery_review folder. Complete the selectorsReview.js file (in js subfolder)

It asks to do in jQuery but attempt to use vanilla javascript only. Later on in lecture we will solve again with jQuery.

Event Handling

-

We use event listeners, also called event handlers, to designate certain code to run based on events.

-

There are built-in events for things that happen on our page, e.g. click, hover, submit, page finished loading, etc.

-

Common events are: submit, click, mouseenter, mouseleave, load.

You can find a full list of events here.

-

addEventListener()

element.addEventListener(type, listener);

-

We can attach a listener, a function to run when the event occurs, to an element on the page.

-

We can retrieve the element using the methods mentioned previously, e.g. document.querySelector().

-

addEventListener() Example

<a href="https://www.google.com/" target="_blank" rel="noopener">
    Click Me!
</a>

const anchorElem = document.querySelector("a");
// The parameter `event` is an object with information
// about the mouse click.
anchorElem.addEventListener("click", event => {
    // There are some default actions associated
    // with an element.
    // For anchor tags, we're taken to a new page.
    // We need to disable that default behavior
    // using `preventDefault()`
    event.preventDefault();
    console.log("You clicked the anchor tag!");
});

jQuery

-

Everything we just did using vanilla JavaScript, we can also do using jQuery, a third-party library.

There’s a good chance our syntax would have been less verbose and marginally easier to remember.

-

…Why did we just cover vanilla JavaScript?

-

It’s important to realize that jQuery uses vanilla JavaScript and is written using vanilla JavaScript.

-

You might not always have access to or be able to use jQuery. For example, React discourages manipulating the DOM directly and from using third-party libraries like jQuery when you absolutely need to modify the DOM directly.

-

As a front-end engineer, you need to be able to manipulate the DOM with and without jQuery.

-

jQuery Background

-

-

Upsides to Using jQuery

-

-

Downsides to Using jQuery

-

-

TBF there aren’t that many good reason to use jQuery these days. However, as an engineer, you should keep tradeoffs in mind.

-

jQuery() Function

-

jQuery’s primary function is called jQuery(), also aliased under $(). It is exposed as a global variable on the window object when we include the library.

-

It does different things depending on the argument passed to it.

-

Including jQuery

-

For today’s class, we’ll include jQuery from a CDN (content delivery network). There’s quite a few CDNs; we’ll go with Google’s:

https://developers.google.com/speed/libraries/#jquery

-

jQuery() Function Example

-

<ul class="special-list">
    <li>First Child</li>
    <li>Second Child</li>
</ul>

// returns a jQuery object containing
// all the `li` inside `.special-list`
$(".special-list li")
// jQuery(".special-list li")

-

jQuery Object

-

The main use of the jQuery function is to select a group of elements. It’s a lot like querySelectorAll().

-

However, the jQuery function returns a jQuery object, an array-like collection of elements.

We only have access to jQuery methods on jQuery objects, not vanilla JavaScript objects, e.g. Nodelist returned from querySelectorAll().

-

-

// bracket notation
$(".special-list li")[0];
// get method*
$(".special-list li").get(0);

-

Advice

Please don’t worry about knowing every single DOM API method and every single jQuery method.



I recommend getting comfortable reading documentation. You’ll be reading the JavaScript documentation on MDN and the jQuery documentation on jQuery’s website, as well as using Google, regularly.

-

https://api.jquery.com/

Their search functionality is poor, so use Google and prefix your search with “jQuery”.

-

Exercise

Consider this repo. Download and open the jQuery_review folder. Complete the selectorsReview.js file (in js subfolder)

Now, attempt these problems with jQuery. If you’re feeling good about this, also solve basicMethodsReview.js
